For kayak anglers and recreational paddlers hauling large boats with irregular hull designs, a low-loading trailer paired with the right carriers and organised gear storage makes every trip run more smoothly.

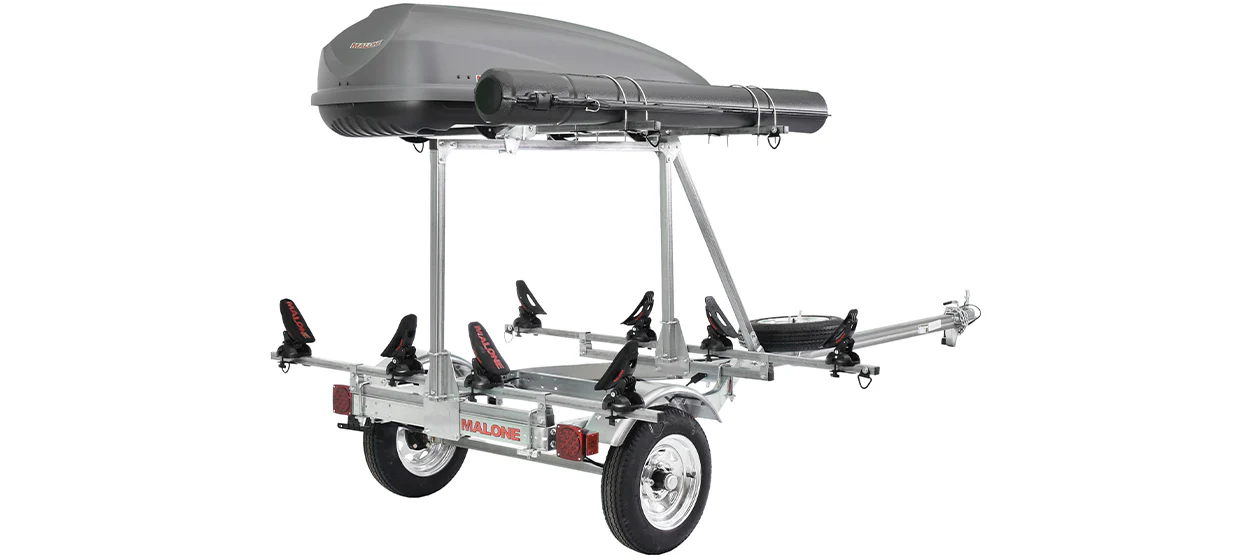

The Malone MicroSport LowBed MPG464-LBTS package pairs the low-profile LowBed trailer with SaddleUp Pro carriers, a 2nd tier kit, Cargo16 rooftop box, and rod storage tube in one complete system. Lower load bars sit at 22" off the ground, significantly reducing the effort required to load and unload heavy recreational and fishing kayaks, and the galvanised marine-grade frame can be backed directly down a boat ramp for water launching without portage. Two SaddleUp Pro carriers provide stable, hull-friendly support for large kayaks with tri-hull and irregular bottom configurations that don't suit standard cradle or J-style carriers.

The 2nd tier kit positions the included Cargo16 rooftop box and rod storage tube at 58" off the ground, comfortably accessible without stepping onto the trailer frame. With an 800 lb total load capacity, DOT and Transport Canada approved submersible LED lighting, and a pre-tested electrical system, this trailer is ready to work from the first trip out. A spare tire with lockable attachment is included for remote launches across Canada's backcountry access roads.

Note: Ships in 8 cartons via truck freight. Assembly required, approximately 3 to 4 hours with standard tools.

• Lower load bar height: 22", upper load bar height: 58"
• Trailer load capacity: 800 lb, boats up to 20' in length
• Trailer length: 13'3", width within fenders: 40"
• Weight without accessories: 197 lb
• Frame: 11-gauge marine-grade galvanised steel
• Lower crossbar spread: adjustable 44" to 63", bar length 78"
• Upper load bars: 50" wide, 2nd tier rated to 100 lb
• Hitch: 2" Class II receiver
• Includes two SaddleUp Pro kayak carriers, Cargo16 rooftop box, rod storage tube, and spare tire with lockable attachment
• DOT and Transport Canada approved lighting
• Made in USA, Five Year Limited Warranty

Specifications:

• Load Capacity: 800 lb / 20' canoe or kayak
• Dimensions: 13' 3" (length)
• Width (Without crossbars): 55"
• Frame Width Assembled (Width within Fenders): 40"
• Weight (Without accessories): 197 lb
• Frame: Marine grade galvanized steel
• Hitch: 2" Class II receiver
• Required Ball Size for Vehicle Attachment: 2"
• Ball Height: 18" From Ground - To Top Of Ball
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Lower Cross Bar Spread (Adjustable): 44" - 63"
• Height of Upper Cross Bars from Ground: 58"
• Height of Lower Cross Bars from Ground: 22"

What’s In The Box:

• (1) LB 2nd Tier w/ Load Bars
• (1) MPG465 Spare Tire with Lockable Attachment
• (1) MPG541 Fishing Rod Storeage Tube
• (2) MPG110 SaddleUp™ Kayak Carriers (set of 2)
• (1) MPG902 Cargo 16™ Rooftop Box
• (2) 12" High Speed Wheels
• (1) Reinforced Steel Tongue
• DOT Approved LED Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• (1) Instruction Manual & Registration Documentation
• Total Shipment: 8 Cartons
• Product Ships by Truck Freight
